OEM EV Wallbox Charger for Home Use

OEM EV Wallbox Charger for Home Use

Short Description:

It is compatible with all charging stations.
Cedars EV Wallbox charger has an attractive appearance design. It is suitable for families and small communities and has been supplying to car makers from 2022.

Essential Details:
Connector: Type 1, Type 2, GB/T optional
Cable Length: 5m
Color: Black
Packing: 1 piece per carton
Customization: Support customization of LOGO on product and PACKING.

Product Detail

Product Tags



Product Name 7kw 11kw 22kw Wallbox
Standard IEC standard
Certificates CE, FCC
AC Voltage Power Input 240v±10% 380V±10% 240v±10% 380V±10%
AC Power Output 16A/3.5kw 16A/11KW 32A/7KW 32A/22KW
Current Adjustable 8-16A 8-16A 8-32A 8-32A
Rated Frequency 50/60HZ
Charging Connector IEC 62196-2 (Type 2/Jennekes) plug
Connector Type SAE J1772 (Type 1) IEC 62196-2 (Type 2)
Internet Connection NFC/Wi-Fi
Insulation resistance >1000MΩ(DC500V)
Contact Resistance 0.5mΩMax
Operating temperature -30℃~+50℃
Protection: Type B RCD
Over Voltage Protection yes Under Voltage Protection yes
Overload Protection yes Short Circuit Protection yes
Earth Leakage Protection yes Ground Protection yes
Ver-temp Protection yes Surge Protection yes
Charging Cable Length 5m or Customize Length
Application AC Home Charging
IP Degree IP55
Control Auto/Button/Card
Withstand voltage: 2000V
Contact Resistance 0.5mΩMax
Mechanical life no-load plug in / pull out > 10000times

Models & Features



AC Wallbox

√Plug & Charge, or RFID Start Charge, or APP operation

√SAE J1772 (Type 1), Type 2 Connector

√4.3-inch LCD Screen & LED Breathing Lamp

√Current output ranging from 32 to 50 amps



AC Wallbox

√RFID Start Charge, or APP operation

√Remote Firmware Updates

√SAE J1772 (Type 1), Type 2 or NACS (Tesla) connector

√Current output ranging from 32 to 80 amps

√4.3-inch LCD Screen & LED Breathing Lamp



AC Wallbox

√RFID Start Charge, or APP operation

√Compact appearance design

√Load balance for option

√Real-time Fault Monitor, Remote Diagnosis

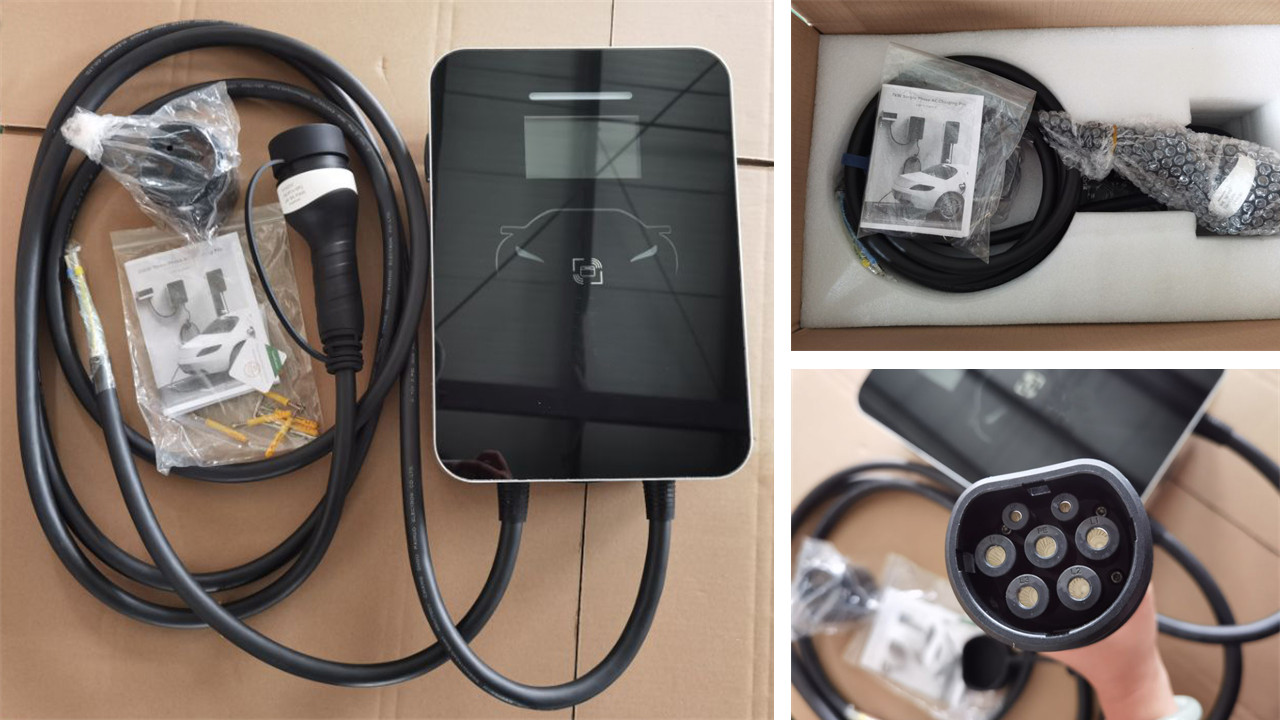

Product Detail Pictures



Q1. What are your terms of payment?
A: T/T 30% as deposit to confirm order, 70% T/T balance payment before pickup.
T/T, PayPal, Western Union payment terms are acceptable.

Q2. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving the deposit payment. The specific delivery time depends on the order quantity and our stock status.

Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4. What is the warranty policy?
A: One year warranty. We will provide lifelong technical support.
Quality problems occur during the warranty (except for caused by improper use), we are responsible for providing free replacement accessories, and the freight shall be paid by the buyer.

Q5. What is the minimum order quantity?
A: We do not sell in retail. MOQ for each model is 10 pieces.

Q6. What is the sample policy?
A: We could supply the paid sample to test quality.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
